WingtraRAY

The Survey Drone Built for Faster Results

Whether you’re navigating vast rural expanses or tight urban corridors, WingtraRAY guarantees mission success on the first flight. By dramatically reducing turnaround times and operational overhead, the system redefines aerial surveying. Its modular, all-in-one design scales effortlessly from millimeter-level inspections to large-area mapping, so you can serve more clients and tackle a wider range of projects with a single versatile platform.

This UAV aerial surveying equipment combines vertical takeoff and landing capabilities with fixed-wing efficiency, allowing you to launch from confined spaces and cover up to 1,360 acres in a single flight. The result is faster data collection with fewer site relocations and reduced crew time in the field.

Accuracy of 3 cm (0.1 ft) with PPK
40% Faster than the previous generation (WingtraOne GEN II)
10 X faster than multicopter drones

WingtraRAY: Accuracy, Speed, Ease of Use

Wingtra offers a complete surveying system, from flight planning to CAD- and GIS-ready outputs. The all-in-one aerial survey solution is built for speed, accuracy and ease of use, so you can focus less on setup and more on results

Increases efficiency by up to 60% across the entire workflow
Seamless data sharing and collaboration
Deliverables on the same day

Parachute add-on

For Safe Flights Over Populated Areas

Get access to survey populated areas – no paperwork or waiting time needed. WingtraRAY’s parachute enables compliant operations over active areas to reduce the need for flight permits

Unlocks access to survey 98% of U.S. land without a waiver
Expand accessible areas to survey by 2-3x

NDAA Blue & Green UAS

Fly Sensitive Projects With Security

WingtraRAY is NDAA Blue and Green UAS cleared in the United States – meaning the WingtraRAY meets the highest cybersecurity standards, which opens the door to government and other sensitive projects.

Blue and Green UAS are U.S. government cybersecurity certification programs for unmanned aerial systems (UAS), where Blue UAS is for Department of Defense applications and Green UAS is for non-DoD federal, state, local, and commercial users

Payloads

MAP-61

Engineered for large-scale, high-resolution 2D mapping and 3D modeling, the MAP 61 camera dramatically shortens mission time in the field. Thanks to its oblique 61MP sensor, fast capture speed, and optimized image overlap, you can quickly capture extensive areas in detailed 3D maps without compromising on quality.

The technology is ideal for monitoring construction progress, infrastructure inspection and urban development projects that require photorealistic detail and accurate measurements from multiple viewing angles.

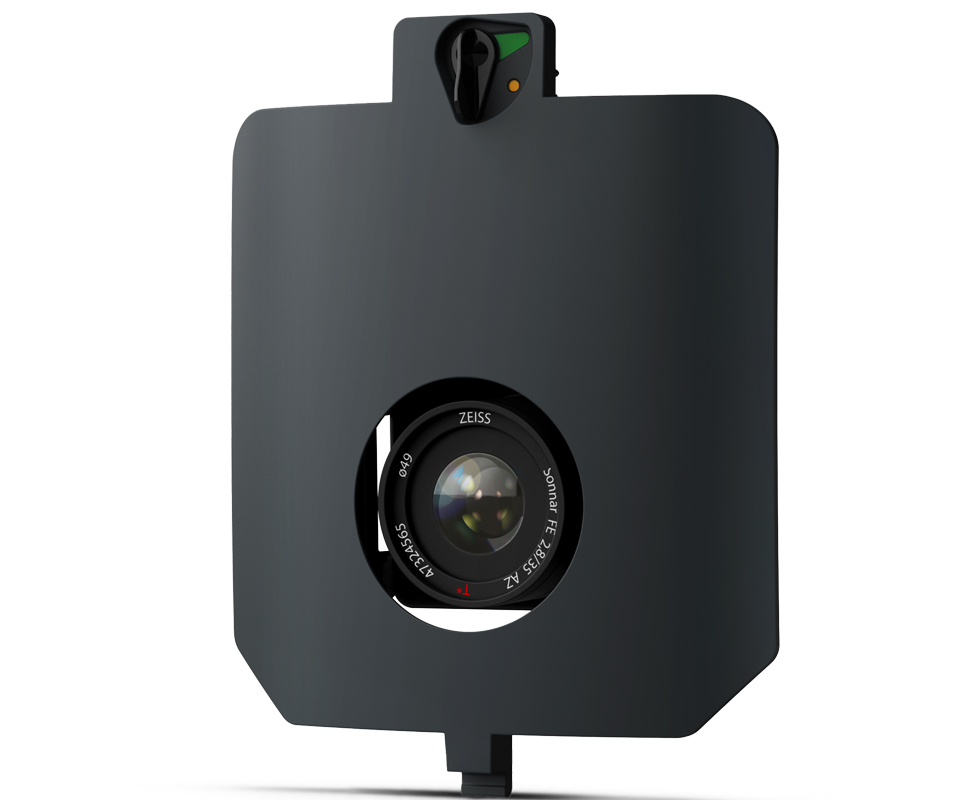

SURVEY-61

Survey‐grade photogrammetry and high‐precision mapping, SURVEY61 offers a 61 MP nadir RGB sensor with a low-distortion lens, enabling aerial surveying in high resolution. Perfect for urban planning and construction, it provides survey-grade accuracy from 120 m AGL without the need of Ground Control Points.

This payload excels in applications demanding precise elevation models, boundary surveys and as-built documentation where survey-grade accuracy is essential for engineering design and site planning.

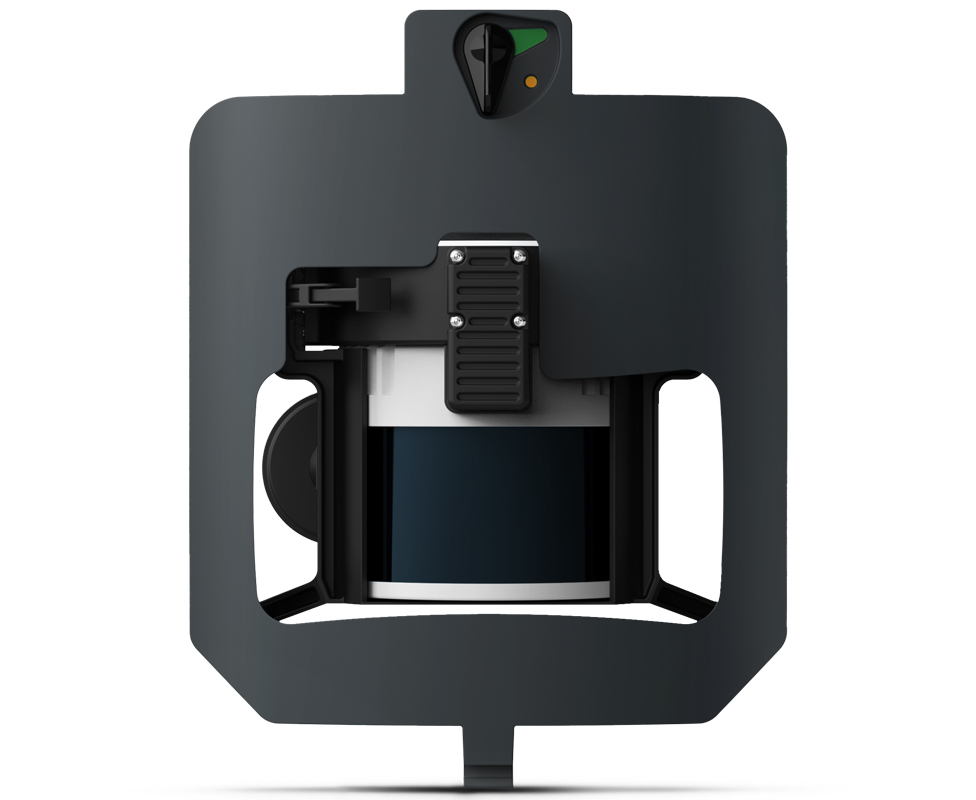

LIDAR

Capture detailed elevation data even through dense vegetation for advanced terrain modeling and topographical analysis with Wingtra’s LIDAR sensor. With point densities of up to 200 points/m², it excels in mining, construction, urban planning and environmental monitoring.

The WingtraCLOUD platform processes LIDAR data alongside photogrammetry, enabling comprehensive site analysis that combines visual context with precise elevation measurements for corridor mapping, stockpile volumes and terrain classification.

Professional UAV Support From SITECH Southwest

Deploying advanced aerial surveying technology requires more than just purchasing equipment. SITECH Southwest brings decades of construction technology experience to every WingtraRAY deployment. Our team provides complete training on flight planning, data capture workflows and integration with existing project management systems.

Our experts help you optimize mission parameters for different site conditions and troubleshoot technical challenges. We ensure your aerial data integrates seamlessly with ground-based surveying and equipment control systems across your projects across Arizona and Southeastern California.

SITECH Southwest is your construction technology experts, and we are excited to offer Wingtra solutions to our clients!

Call us at 602-437-0410 to speak directly with a member of our team to arrange a product demo.
